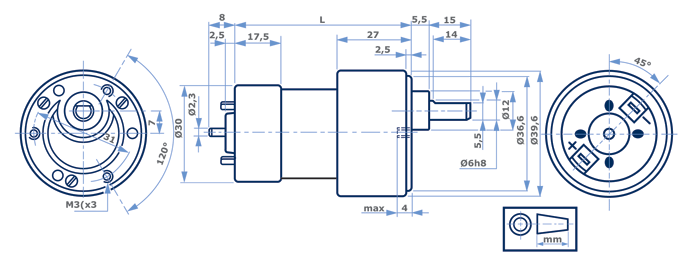

Technical Data - Series RH158 - Spur Gear Motor - Diameter 39.6mm
| Type | Nominal Voltage (V) |
L (mm) |
Ratio To: 1 |
Max Torque (Ncm) |
Speed No Load (rpm) |
Speed at Max Torque (rpm) |
Current No Load (mA) |
Current at Max Torque (mA) |
| RH158.12.15 RH158.24.15 |
12 24 |
64 | 14.14 | 10 | 440 | 300 | <140 <70 |
660 330 |
|
RH158.12.30 RH158.24.30 |
12 24 |
64 | 29.75 | 20 | 210 | 140 |
<140 <70 |
660 330 |
| RH158.12.75 RH158.24.75 |
12 24 |
66.5 | 76.84 | 50 | 81 | 55 | <140 <70 |
680 340 |
|
RH158.12.100 RH158.24.100 |
12 24 |
66.5 | 94.37 | 60 | 66 | 45 |
<140 <70 |
680 340 |
| RH158.12.200 RH158.24.200 |
12 24 |
69 | 198.5 | 100 | 33 | 23 | <140 <70 |
580 290 |
|
RH158.12.250 RH158.24.250 |
12 24 |
69 | 243.8 | 100 | 26 | 21 |
<140 <70 |
500 250 |
|
RH158.12.510 RH158.24.510 |
12 24 |
72 | 512.85 | 100 | 12 | 10.5 |
<140 <70 |
300 150 |
|
RH158.12.630 RH158.24.630 |
12 24 |
72 | 629.82 | 100 | 10 | 9 |
<140 <70 |
270 135 |
Typical values at ambient temperature +20°
Tolerance +/- 10%

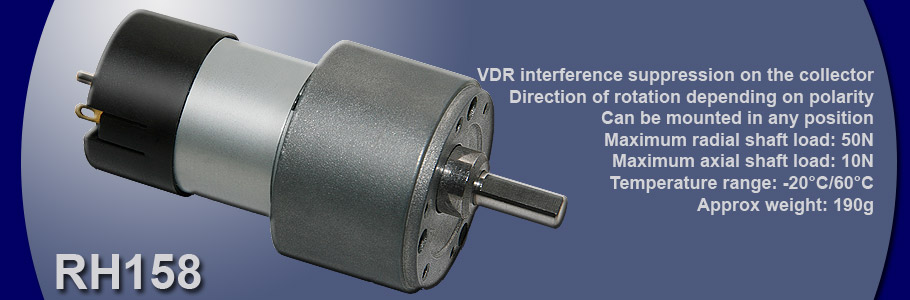

VDR interference suppression on the collector.
Direction of rotation depending on polarity
Can be mounted in any position
Maximum radial shaft load: 50N
Maximum axial shaft load: 10N
Temperature range: -20°C/60°C
Approx weight: 190g
