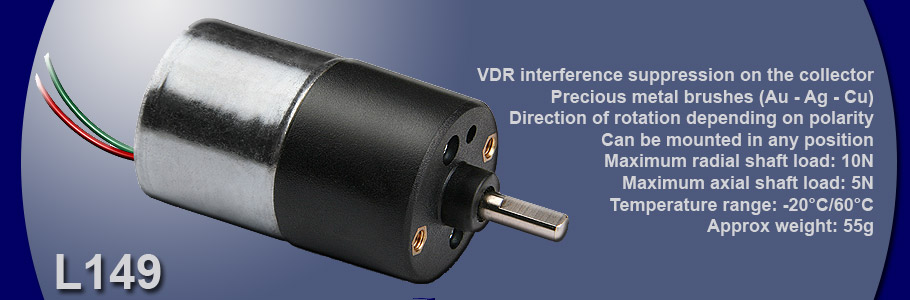

L149

Technical Data - Series L149 - Spur Gear Motor - Diameter 27mm

Type Nominal
Voltage
(V)		 L
(mm)		 Ratio
To: 1		 Max
Torque
(Ncm) 		 Speed
No Load
(rpm)		 Speed at
Max Torque
(rpm)		 Current
No Load
(mA)		 Current at
Max Torque
(mA)
L149.4.10
L149.6.10
L149.12.10		 4.5
6
12 		 36 10  1.5 255
215
255		 165
120
165		 <35
<30
<20		 100
85
50
L149.4.10
L149.6.10
L149.12.10		 4.5
6
12 		 36 20.8 2.5 125
105
125		 80
60
80		 <35
<30
<20		 100
85
50
L149.4.10
L149.6.10
L149.12.10		 4.5
6
12 		 41 43.3 3.8 25 100 <35
<30
<20		 100
85
50
L149.4.10
L149.6.10
L149.12.10		 4.5
6
12 		 41 90.3 8 660÷75 440÷10 <35
<30
<20		 100
85
50
L149.4.10
L149.6.10
L149.12.10		 4.5
6
12 		 46 188 14 460÷62 300÷9 <35
<30
<20		 100
85
50
L149.4.10
L149.6.10
L149.12.10		 4.5
6
12 		 46 391.8 20 ø 30 ø 39.6 <35
<30
<20		 90
75
45

download pdfTypical values at ambient temperature +20°
Tolerance +/- 10%

VDR interference suppression on the collector.
Precious metal brushes (Au - Ag - Cu)
Direction of rotation depending on polarity
Can be mounted in any position
Maximum radial shaft load: 10N
Maximum axial shaft load: 5N
Temperature range: -20°C/60°C
Approx weight: 55g

L149
